Model Overview
KYD175-2 is a sporty large-displacement 175cc motorcycle for commute and cargo hauling. Measuring 2003×790×1070 mm with a light curb weight of 107 kg, it delivers agile handling. The 180mm ultra-high ground clearance ensures smooth passage over bumpy, muddy rural roads.


Powered by a 174.5cc single-cylinder 4-stroke air-cooled engine, it generates max power of 9.5kW and reaches a top speed of 100 km/h. The peak torque of 12.5N·m supplies ample power for climbing slopes with full loads. The 14L large fuel tank supports long-distance travel with ultra-low fuel consumption of only 2.0L per 100km, combining strong power and cost-saving efficiency.


Front disc and rear drum brakes provide responsive reliable stopping power. Fitted with full HD LCD digital dashboard and adjustable thickened dual-spring rear shock absorbers, it integrates sport appearance, comfortable riding and cargo-carrying capability. Tough and easy to maintain, this model is perfectly suited for urban-rural daily travel and heavy-load short-distance freight in mountainous regions.

cc

Engine

kW/7500rpm

Max Power

L

Fuel Capacity

kg

Weight

mm

Seat Height

N.m/6000rpm

Max Torque
KYD175-2画板 3

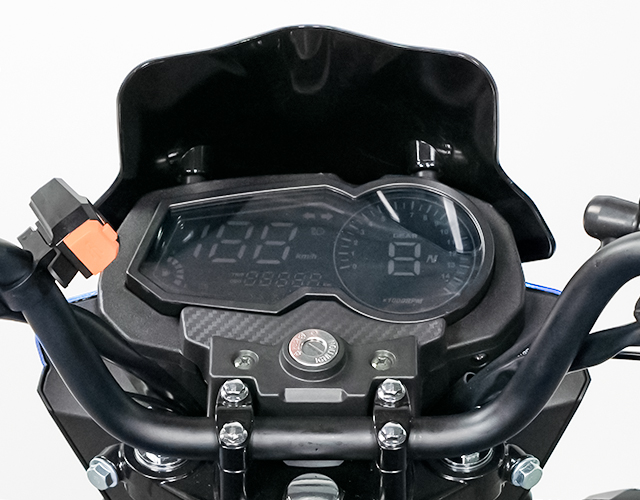

Full LCD Digital Dashboard

Integrated full LCD digital dashboard abandons traditional pointers. The screen clearly displays speed, RPM, fuel level, mileage and all riding data with intuitive reading, and built-in backlight provides great visibility at night. Its sporty shape matches the streamlined vehicle appearance, with compact internal structure and low failure rate. No screen reflection under strong sunlight or rain, allowing riders to monitor vehicle status at all times.

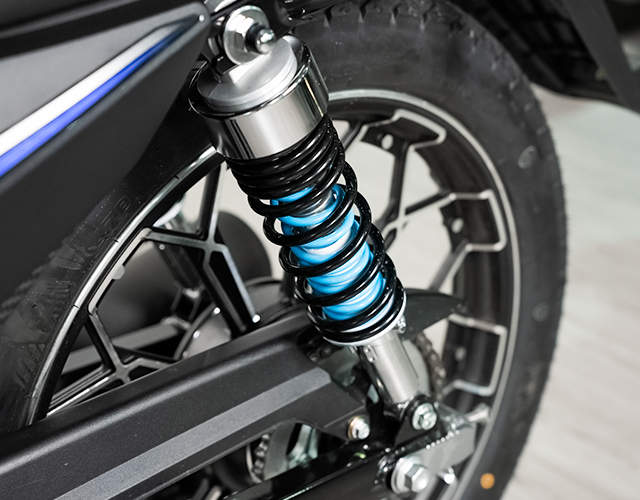

Thickened Dual-Spring Hydraulic Rear Shock Absorber

Thickened dual-spring hydraulic rear shock absorbers with adjustable preload allow riders to tune hardness according to passenger and cargo weight. The hydraulic buffer structure effectively filters vibration from gravel and potholed roads to boost riding comfort. Paired with 180mm ultra-high ground clearance, the high-performance shock prevents bottoming out on rough roads and steep slopes, delivering stable smooth rides even under full load.

KYD175-2画板 4
KYD175-2画板 5

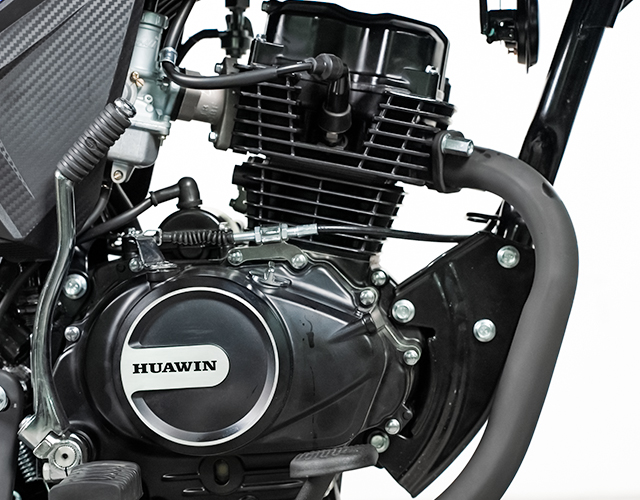

174.5cc High-Torque Air-Cooled Power Engine

Equipped with a 174.5cc single-cylinder 4-stroke air-cooled large-displacement engine, it delivers stronger power reserve than 150cc models. With max power of 9.5kW and peak torque of 12.5N・m, it offers abundant power for heavy-load climbing and overtaking. Large cooling structure ensures stable temperature during long cargo rides. Matched with a 14L large fuel tank for long range, it only consumes 2.0L fuel per 100km, balancing powerful performance and fuel efficiency. CDI electronic ignition enables smooth startup, ideal for high-intensity freight transport in mountain and rural areas.

KYD175-2huaban

Technical Specifications

Size & quality

Length × Width × Height:

2003 × 790 × 1070 mm

Wheelbase:

1295 mm

Curb weight:

107 kg

Seat Height:

750 mm

Ground clearance:

180 mm

Tire size (FR,RR):

2.75-18, 3.00-18

Power & Performance

Braking & Ignition
