Practical Heavy-load 150cc Motorcycle
Model Overview

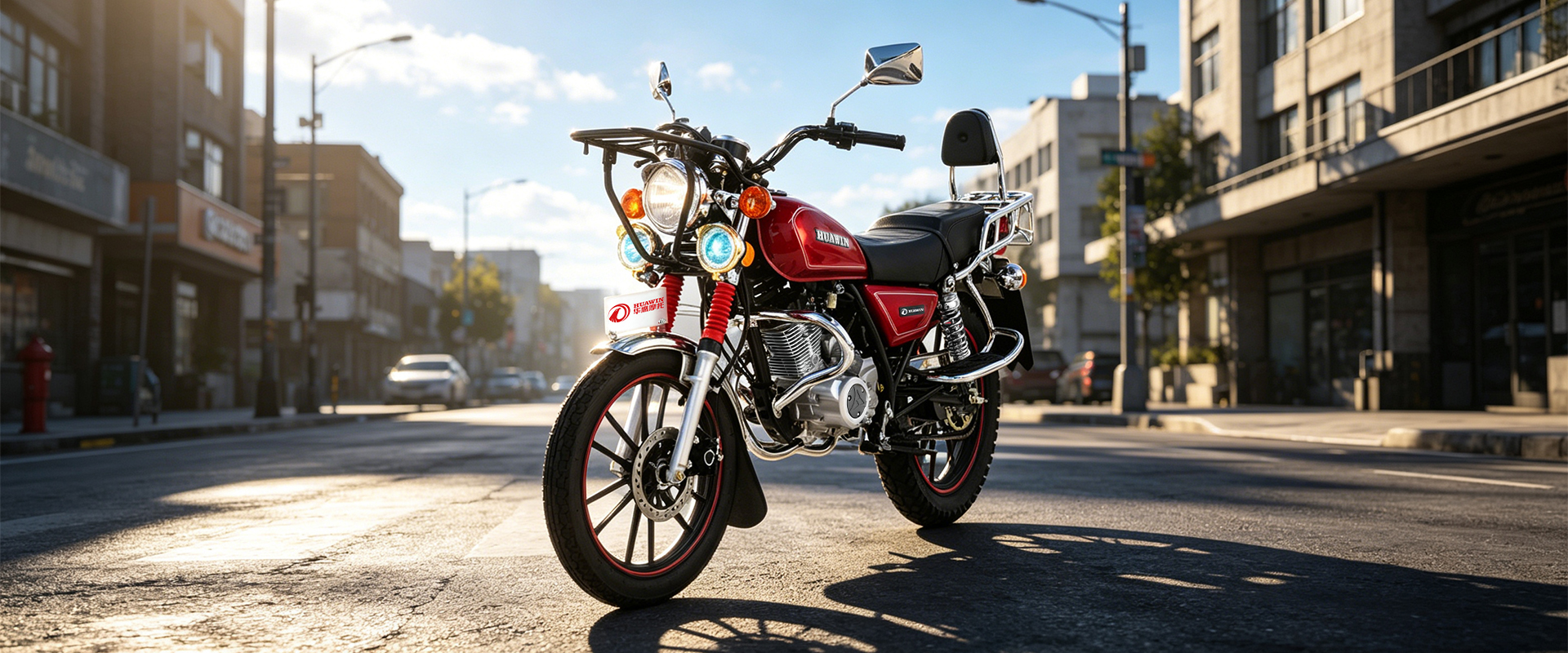

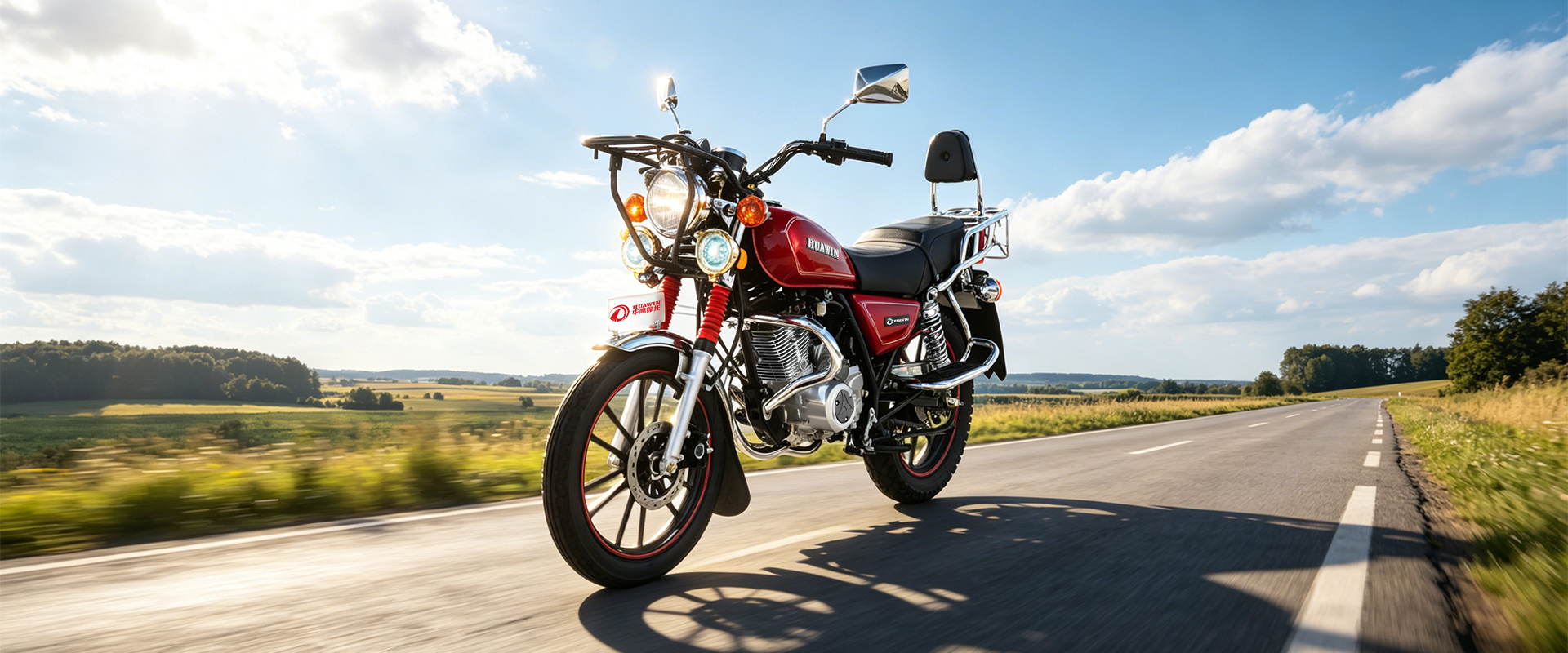

KYD150-17A is a practical heavy-load 150cc motorcycle built for town-country cargo transport and mountain commuting. Measuring 2030×740×1100 mm with a curb weight of 120 kg, it features 195mm ultra-high ground clearance to pass bumpy, muddy rough roads smoothly. Powered by a 149cc single-cylinder 4-stroke air-cooled engine, it delivers max power of 9.0kW and peak torque of 11.5N·m, reaching a top speed of 90km/h. The 11L fuel tank offers long driving range with economical fuel consumption of only 2.3L per 100km, balancing strong power and low running cost.


This model is equipped with multiple practical protective and carrying configurations:
The full-wrap chrome anti-collision guard fully covers the engine and vehicle body, protecting core components from scratches and impact when the bike tips over. The reinforced metal headlight bracket firmly holds the main lamp and dual auxiliary spotlights, buffering collision during bumpy rides or accidental fall to prevent lamp cracking. A thick passenger backrest is fitted at the rear seat to provide stable support for rear riders, greatly reducing fatigue on long trips.


It adopts front disc and rear drum brakes, vintage dual-barrel mechanical dashboard, as well as front & rear double cargo racks. Combining comfortable passenger riding, powerful hauling capacity and all-round anti-damage protection, this rugged bike features simple structure and low maintenance cost, making it a cost-effective workhorse for rural short-distance business and farm material delivery.

cc

Engine

kW/8500rpm

Max Power

L

Fuel Capacity

kg

Weight

mm

Seat Height

N.m/6500rpm

Max Torque
Heavy-load 150cc Motorcycle

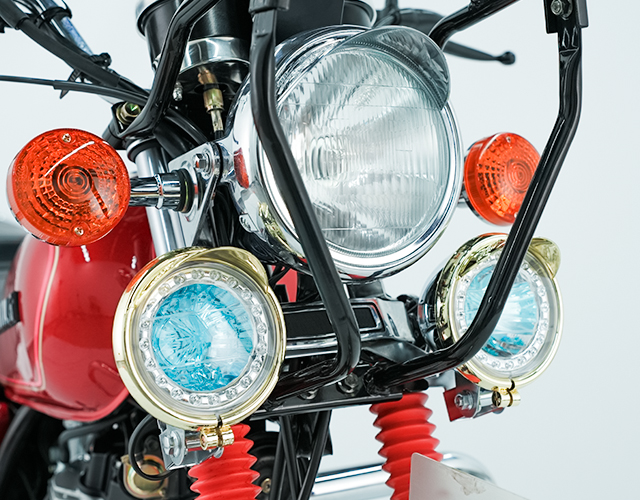

Dual Auxiliary Bright Headlights & Reinforced Anti-Crash Metal Bracket

The main headlight is matched with a pair of round auxiliary spotlights with chrome bezels, expanding night illumination range and brightness for safer riding on unlit rural roads. The integrated thick metal protective frame fully wraps the lamp assembly, buffering impact during bumpy travel or accidental fall, effectively preventing headlights and turn signals from cracking. It realizes both upgraded lighting performance and anti-crash protection.

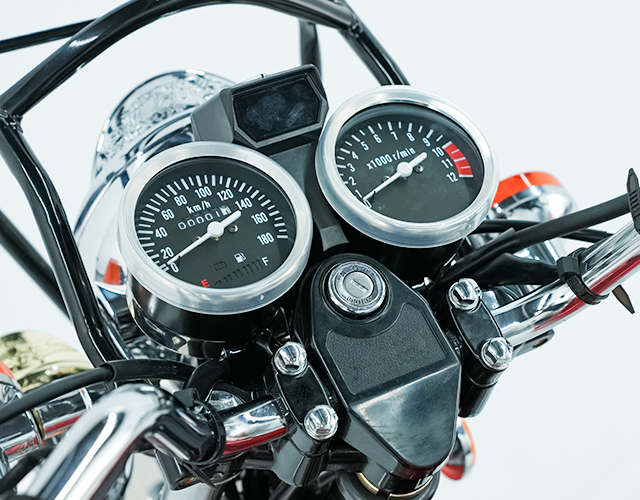

Vintage Dual-Barrel Mechanical Dashboard

Split dual round mechanical dashboard separately displays speed and engine RPM, equipped with full indicator lights for neutral gear and malfunctions. The all-mechanical structure is stable and durable against high temperature, mud and vibration. Clear scales remain readable under strong sunlight to monitor vehicle status in real time. Its vintage look matches the cargo motorcycle styling, featuring low failure rate and easy maintenance.

150cc Motorcycle manufacturer
Mondial off road

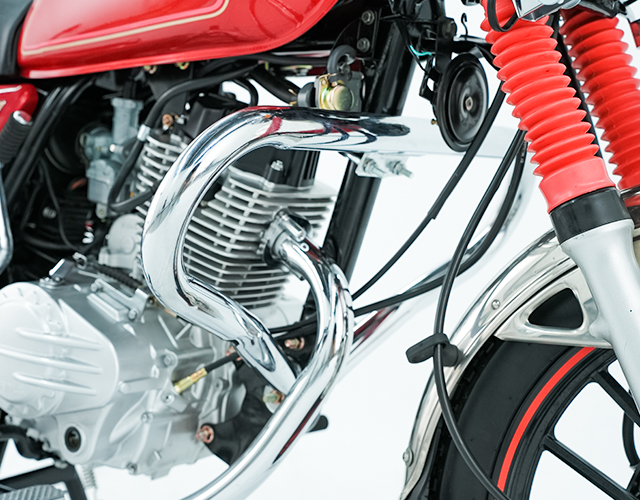

Full-Wrap Chrome Anti-Crash Guard, Full Protection for Engine

The integrated thick chrome anti-collision guard fully encloses the engine and frame sides, isolating ground friction and impact when the bike tips over to protect cylinder and covers from damage. The chrome coating resists rust and corrosion even on long-term muddy outdoor rides. Reserved mounting holes support additional racks and foot pegs, bringing extra refitting functions besides full engine protection. It is matched with a 150cc air-cooled engine with large cooling fins for steady and durable power output.

Practical Heavy-load 150cc Motorcycle

Technical Specifications

Size & quality

Length × Width × Height:

2030 × 740 × 1100 mm

Wheelbase:

1280 mm

Curb weight:

120 kg

Seat Height:

765 mm

Ground clearance:

195 mm

Tire size (FR,RR):

2.75-18, 110/90-16

Power & Performance

Braking & Ignition
