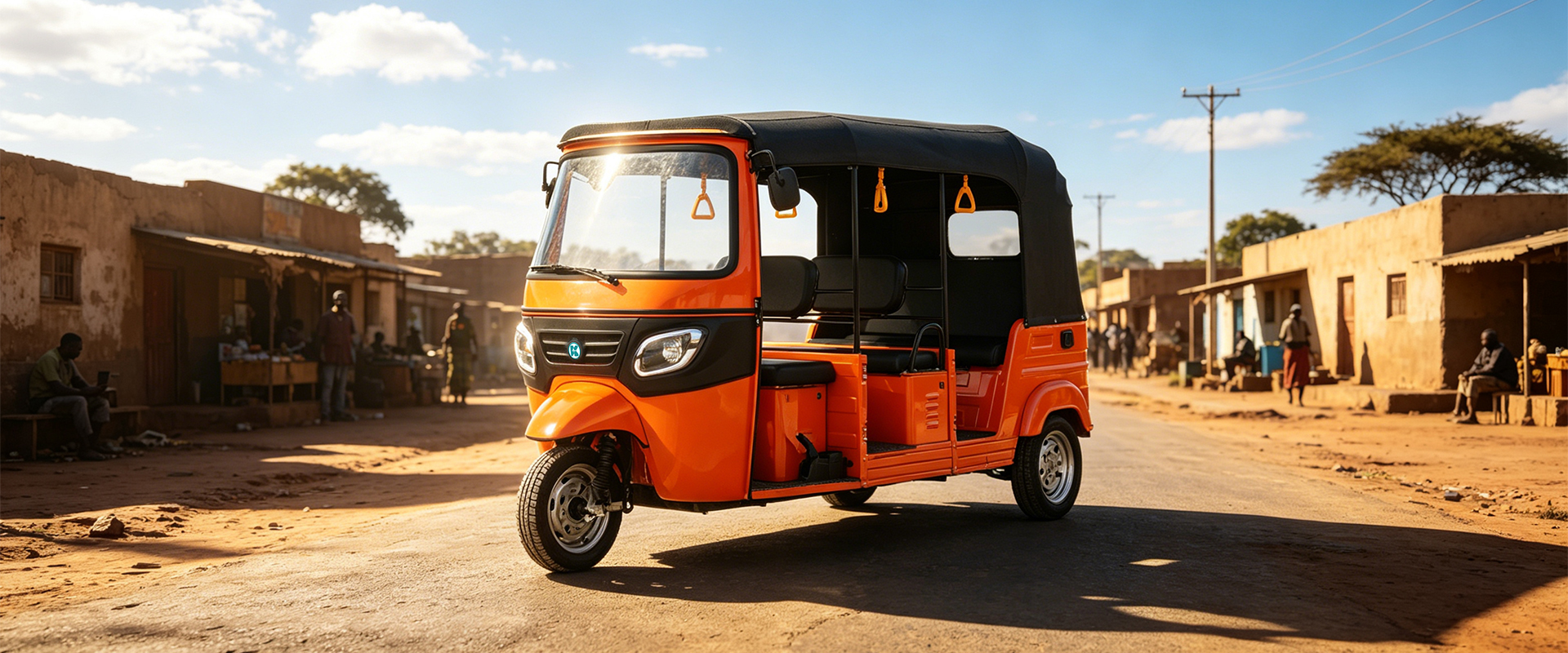

Passenger Tricycle
Model Overview
This 3-row electric passenger tricycle features a spacious cabin with three independent rows: driver seat, middle seat and rear seat, which can carry more passengers with superior passenger capacity.


With overall dimensions of 3300×1360×1800mm and a long wheelbase of 2690mm, it runs smoothly on bumpy roads. It is equipped with a 3000W permanent magnet synchronous motor with peak power up to 11kW and climbing capacity over 15°.


Optional 72V 80AH~150AH LFP battery delivers 80~150km driving range, and a 450W solar panel roof is available for on-road charging.


It adopts CBS hydraulic drum brakes and rear differential shaft drive for stable braking and efficient power transmission. The digital dashboard plus high/mid/low speed and forward/reverse gears make operation easy. It is the ideal choice for long-distance rural passenger transport.

-150km

Distance Range

km/h

Max. Speed

mm

Wheelbase

Ah

Charging current

kw

Max current

-4000w

Rate power of motor
Electric Tricycle

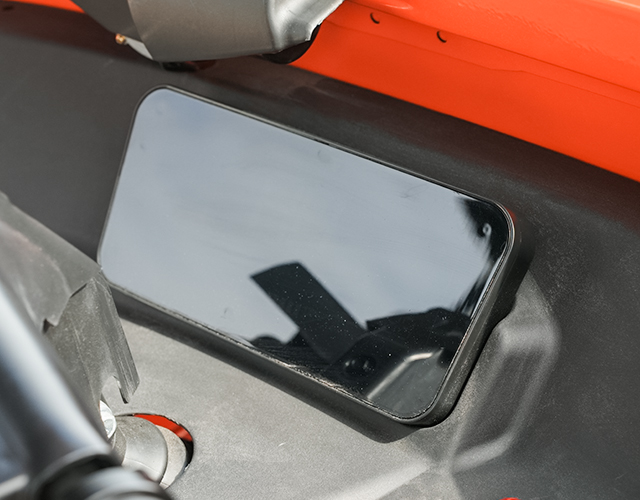

High-Definition LCD Digital Dashboard

Large-size LCD digital dashboard with a clear screen, easy to read even under strong sunlight. It can display real-time data including speed, remaining battery power and driving mileage, allowing drivers to keep track of vehicle conditions easily.

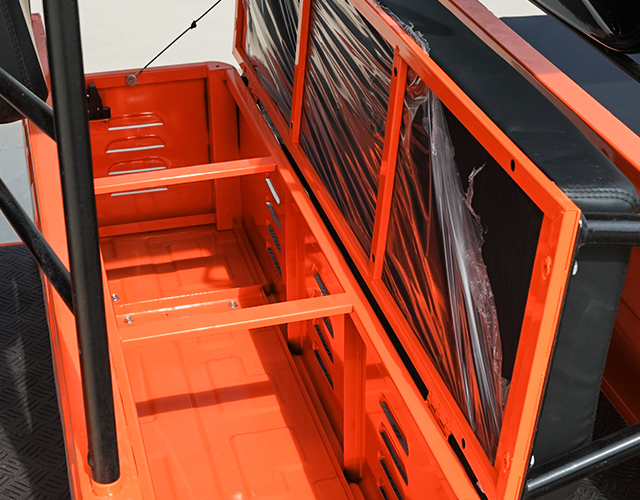

Large Hidden Storage Compartment Under Seats

There is a large enclosed storage compartment beneath the seats with deep space and big capacity. It can hold tools, luggage and spare parts safely and secretly. Making full use of the vehicle’s idle space, it brings excellent storage performance while carrying passengers.

Electric Tricycle
Electric Passenger Tricycle

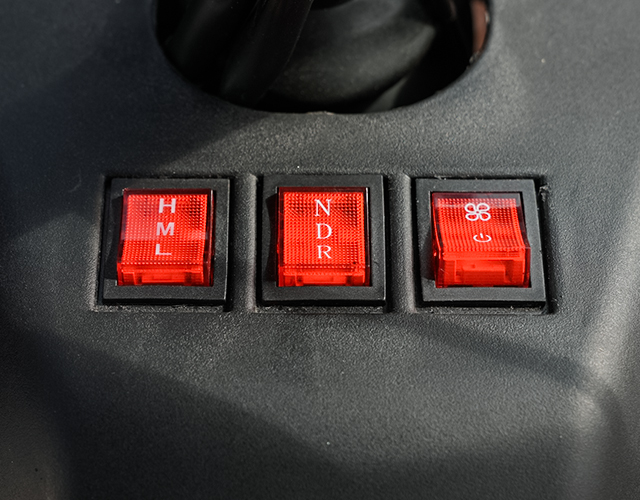

Multi-Gear Control Buttons for Flexible Driving

It is equipped with multiple function buttons, including high/low speed shift, forward/reverse switch and fan control. Gear shifting is smooth and effortless. Drivers can freely adjust power modes for starting, climbing and cruising. The operation is simple, even for new riders.

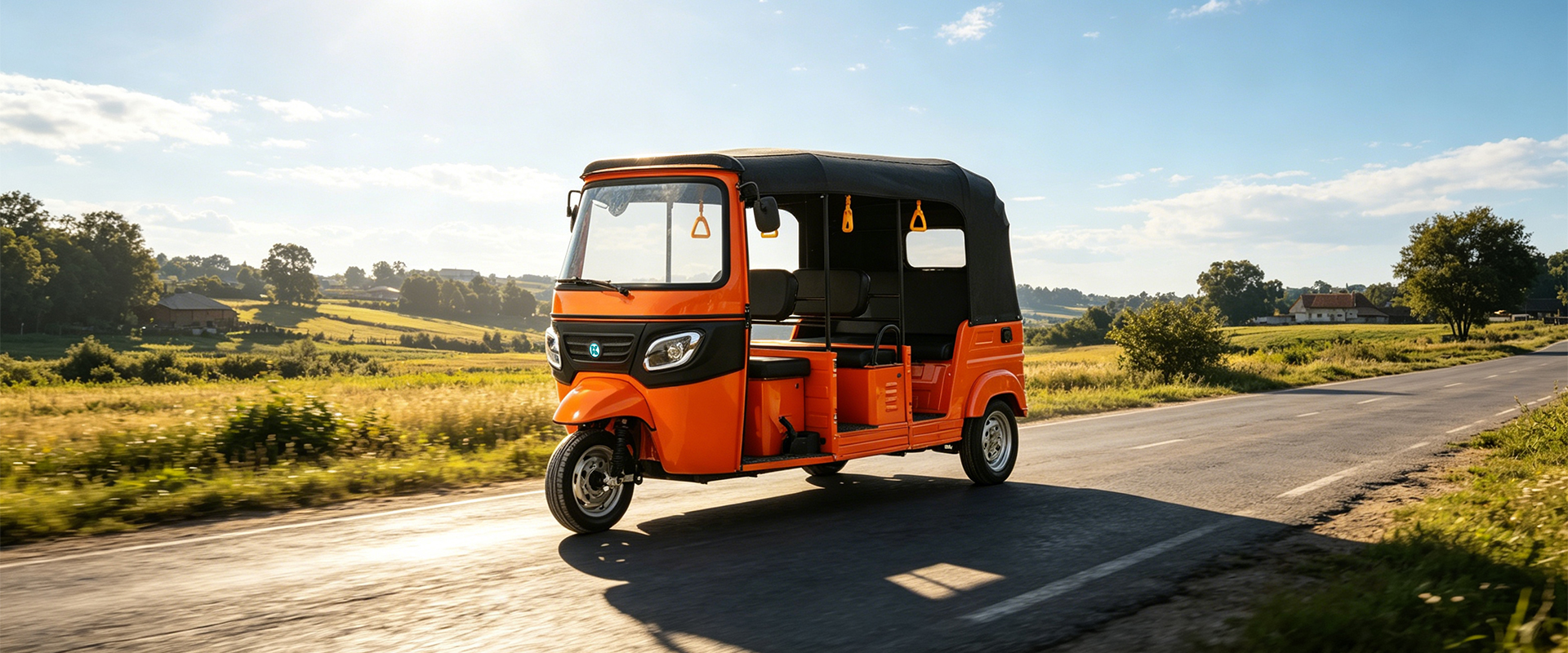

Enclosed Three-wheel Tricycle

Technical Specifications

Size & Mass

Length × Width × Height:

3300 × 1360 × 1800 mm

Wheelbase:

2690 mm

Curb weight:

450 kg

Mid-passenger seat size:

1090 × 330 × 80 mm

Rear passenger seat size:

1160 × 390 × 90 mm

Tire size (F/R):

25/65R12 tubeless tires

Power & Performance

Braking & Transmission

  • Tricycle
  • Tricycle for adults
  • Electric tricycle car
  • Electric tricycle enclosed
  • Electric tricycle for 2 adults
