Model Overview
Model KYD2500D-5 is a classic electric motorcycle fitted with a mid-mounted permanent magnet motor. It has a rated power of 2.5kW and peak torque of 319 N·m for strong power output. Equipped with a 55Ah LFP battery, it delivers a driving range of 80~120 km per full charge, with a top speed of 80 km/h.


The wheelbase is 1260 mm and ground clearance reaches 130 mm. It can climb slopes over 30° and carry a maximum load of 150 kg. With front & rear drum brakes and chain transmission, the robust frame adapts perfectly to urban and rural roads. Boasting retro styling and outstanding durability, it is ideal for daily commuting and cargo transport.

-120km

Distance Range

km/h

Max. Speed

mm

Wheelbase

kw/3800rpm

Max. Power

N.m/6500rpm

Peak Torque

LFPAH

Battery Capacity
KYD2500D-5画板 3

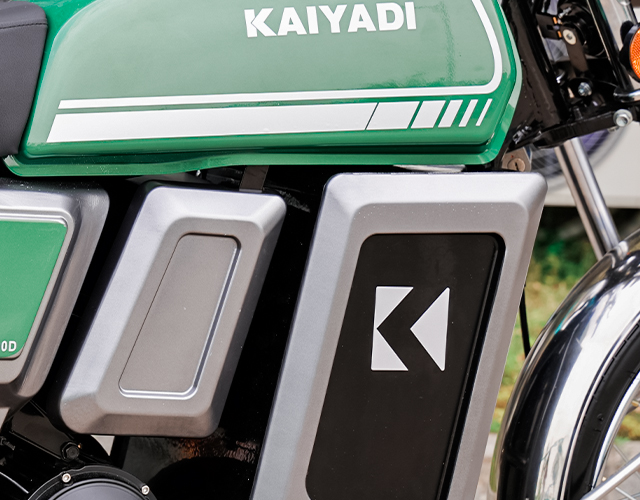

Retro & Sturdy Body with Durable Outer Battery Panels

It features a classic retro design with sharp lines and two-tone green & grey battery panels, plus eye-catching brand logos. The robust metal casing is wear-resistant and highly protective. With a compact and solid structure, it carries the nostalgic vibe of traditional motorcycles while standing up to heavy-duty cargo transport and long-distance riding.

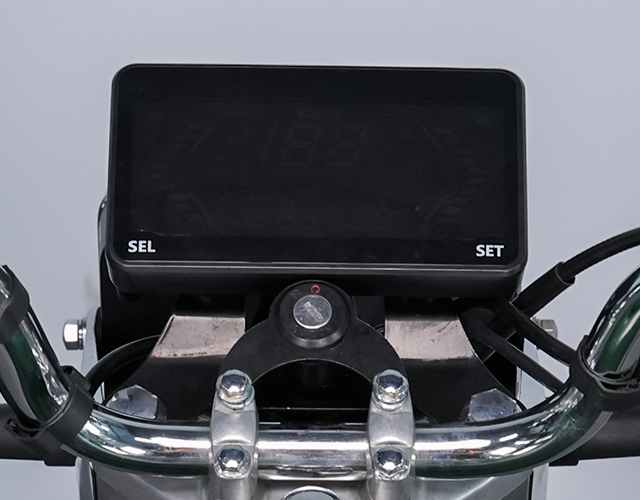

Multifunctional LCD Dashboard for Clear Driving Data

Multifunctional LCD digital dashboard with SEL & SET physical buttons for easy operation. The high-definition screen displays real-time data including speed, remaining battery and mileage, which remains clearly readable under strong sunlight to keep you well informed on the road.

KYD2500D-5画板 4
KYD2500D-5画板 5

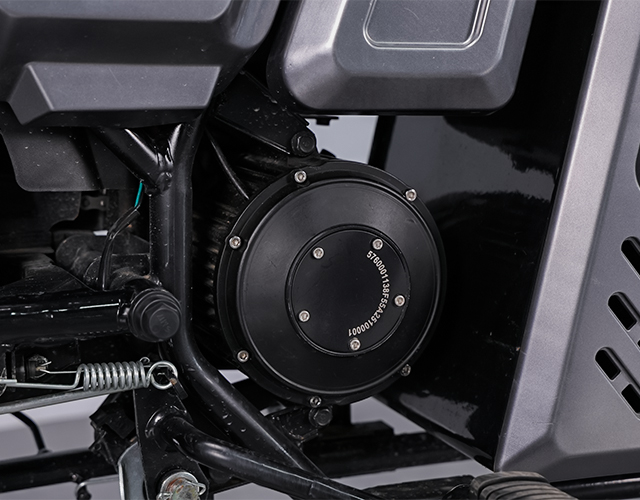

High-Torque Mid-Motor, Powerful for Heavy Loads & Climbing

High-performance mid-mounted permanent magnet motor delivers steady and explosive power at startup. Thanks to its high torque and matched 100A controller, it climbs steep slopes effortlessly and maintains strong power even under heavy load, perfectly suited for hilly and rural roads. The compact structure brings excellent heat dissipation, low failure rate and long-term reliability.

KYD2500D-5huaban

Technical Specifications

Size & Mass

Length × Width × Height:

2040 × 770 × 1050 mm

Wheelbase:

1260 mm

Curb weight:

102 kg

Max load:

150 kg

Ground clearance:

130 mm

Tire size (FR,RR):

2.50-18, 2.75-18

Power & Performance

Braking & Transmission

  • 500x300.png
  • 4.png
  • 2.png
  • 11 600x500.png
  • 22.png
